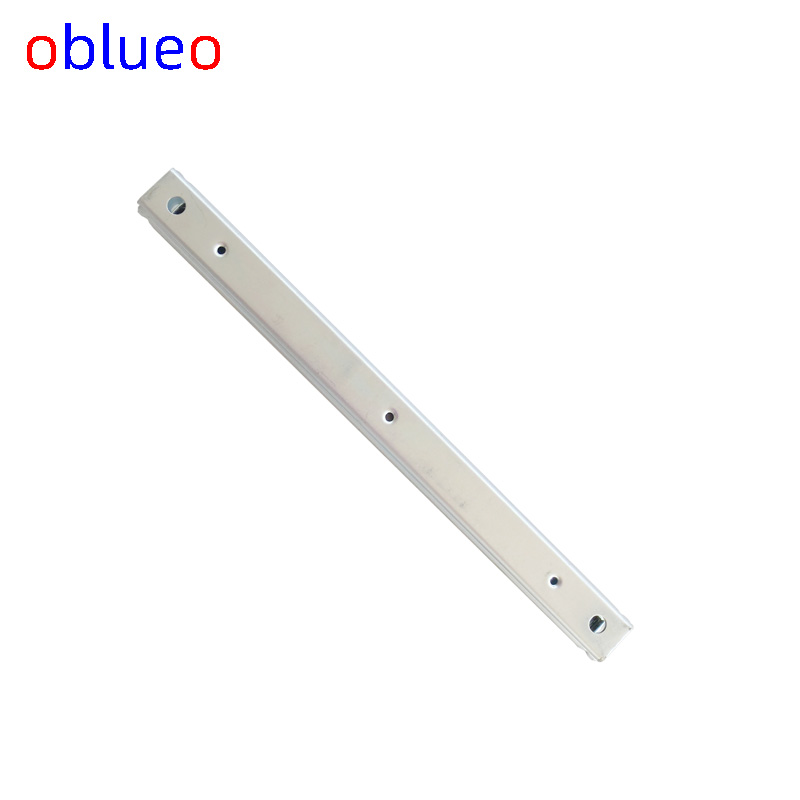

17mm width slide rail (three Section)
SKU: OBL-02427
Cold Rolled Steel
17mm
Cold Rolled Steel
1. Length：100-500mm. 2. Width：17mm. 3. Height: 20mm. 4. load：≤35LBS. 5. Surface Treatment：zinc/black. 6. Material: cold rolled steel. 7. Customization: can be customized as needed.
REACH / RoHS
EU Shipping
ISO 9001
Technical Specifications
General
| Parameter | Value | Unit |
|---|---|---|
| Product name | 17mm width slide rail (Basic Style) | mm |
| Brand | oblueo | — |
| Model | LZ-1704A | — |
| Long | 100~500mm | mm |
| Wide | 17mm | mm |
| Height | 20mm | mm |
| Colour | Zinc/black | — |
| Material quality | Cold rolled steel | — |
| Steel thickness | 1.0*1.0mm | — |
| Load bearing | ≤15KG / 35LBS | KG |
| Salt mist | 12-48H | H |
| Installation method | Side installation | — |
| Customized | Customizable length and holes | — |
| Application industry | RV, Industrial equipment, ATM machines, etc | — |
| Drawings:PDF/CAD/3D | Consult the sales engineer to obtain | — |
| Usage method | Consult the sales engineer to obtain | — |
| Industrial packaging | 50 PCS / Transparent bag,50 PCS / carton | — |
| Contacts | Robinson zhao | — |
| sales@oblueo.com | — | |
| Tel | 86-760-86380655 | — |
Product Description
| Specification | FOB Price（MOQ=1000PCS) | FOB Price（MOQ=10000 PCS) |
| 100mm(close) | USD=1.2PCS | USD=1PCS |
| 150mm(close) | USD=1.2PCS | USD=1PCS |
| 200mm(close) | USD=1.2PCS | USD=1PCS |
| 250mm(close) | USD=1.2PCS | USD=1PCS |
| 300mm(close) | USD=1.44PCS | USD=1.2PCS |
| 350mm(close) | USD=1.92PCS | USD=1.4PCS |
| 400mm(close) | USD=0.78PCS | USD=1.6PCS |
| 450mm(close) | USD=2.16PCS | USD=1.8PCS |
| 500mm(close) | USD=2.4PCS | USD=2PCS |
| Product Introduction | |
| Product name | 17mm width slide rail (Basic Style) |
| Brand | oblueo |
| Model | LZ-1704A |
| Specification parameters | |
| Long | 100~500mm |
| Wide | 17mm |
| Height | 20mm |
| Colour | Zinc/black |
| Material quality | Cold rolled steel |
| Steel thickness | 1.0*1.0mm |
| Load bearing | ≤15KG / 35LBS |
| Salt mist | 12-48H |
| Installation method | Side installation |
| Customized | Customizable length and holes |
| Application industry | RV, Industrial equipment, ATM machines, etc |
| Product drawings | |
| Drawings:PDF/CAD/3D | Consult the sales engineer to obtain |
| Usage method | Consult the sales engineer to obtain |
| Packing list | |
| Industrial packaging | 50 PCS / Transparent bag,50 PCS / carton |
| Contact Us | |
| Company | oblueo |
| Contacts | Robinson zhao |
| sales@oblueo.com | |
| Tel | 86-760-86380655 |
