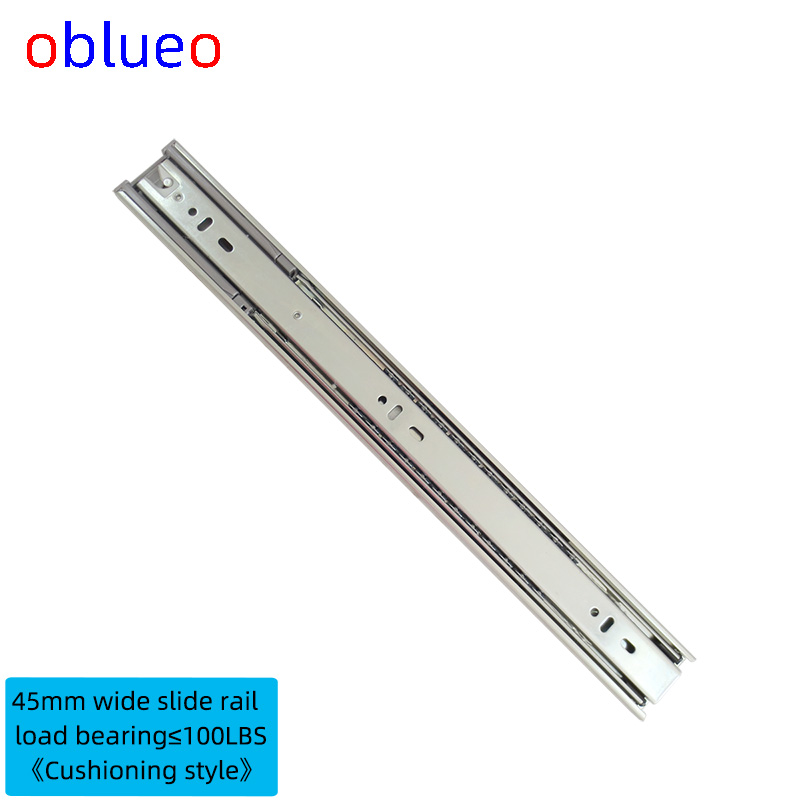

45mm width slide rail (Cushioning)
SKU: OBL-02125
Cold Rolled Steel
45mm
Cold Rolled Steel
1. length: 250-700mm 2. width: 45mm 3. load: ≤100LBS 4. Material: cold rolled steel. 5. Surface Treatment：zinc/black. 6. Material: cold rolled steel. 7. Customization: can be customized as needed
REACH / RoHS
EU Shipping
ISO 9001
Technical Specifications
General
| Parameter | Value | Unit |
|---|---|---|
| Product name | 45mm width slide rail (Cushioning) | mm |
| Brand | oblueo | — |
| Model | LZ-4502 | — |
| Long | 250~700mm | mm |
| Wide | 45mm | mm |
| Height | 12.7mm | mm |
| Colour | Zinc/black | — |
| Material quality | Cold rolled steel | — |
| Steel thickness | 1.0*1.0*1.2/ 1.2*1.2*1.4mm | — |
| Load bearing | ≤45KG / 100LBS | KG |
| Salt mist | 24-48H | H |
| Installation method | Side installation | — |
| Customized | Customizable length and holes | — |
| Application industry | RV, Industrial equipment, ATM machines, etc | — |
| Drawings:PDF/CAD/3D | Consult the sales engineer to obtain | — |
| Usage method | Consult the sales engineer to obtain | — |
| Industrial packaging | 2 PCS / Transparent bag,30 PCS / carton | — |
| Contacts | Robinson Zhao | — |
| Tel | 86-0760-8638 0655 | — |
| sales@oblueo.com | — | |
| Add | Sanxiang Town, Zhongshan City, Guangdong Province, China | — |
Product Description
| Product Introduction | |
| Product name | 45mm width slide rail (Cushioning) |
| Brand | oblueo |
| Model | LZ-4502 |
| Specification parameters | |
| Long | 250~700mm |
| Wide | 45mm |
| Height | 12.7mm |
| Colour | Zinc/black |
| Material quality | Cold rolled steel |
| Steel thickness | 1.0*1.0*1.2/ 1.2*1.2*1.4mm |
| Load bearing | ≤45KG / 100LBS |
| Salt mist | 24-48H |
| Installation method | Side installation |
| Customized | Customizable length and holes |
| Application industry | RV, Industrial equipment, ATM machines, etc |
| Product drawings | |
| Drawings:PDF/CAD/3D | Consult the sales engineer to obtain |
| Usage method | Consult the sales engineer to obtain |
| Packing list | |
| Industrial packaging | 2 PCS / Transparent bag,30 PCS / carton |
| Contact Us | |
| Company | Oblueo Ltd |
| Contacts | Robinson Zhao |
| Tel | 86-0760-8638 0655 |
| 86-136 8018 6563 | |
| sales@oblueo.com | |
| Add | Sanxiang Town, Zhongshan City, Guangdong Province, China |
