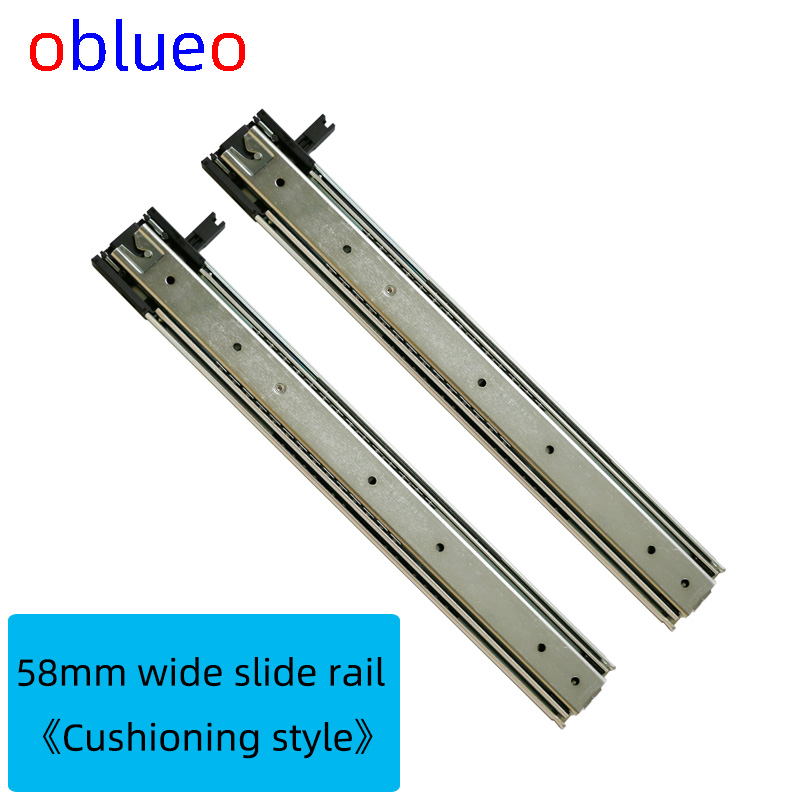

58mm wide slide rail (Cushioning style)
SKU: OBL-00045
Cold Rolled Steel
58mm
Cold Rolled Steel
1. Length:200-2000mm. 2. Width:58mm. 3. Height: 19.1mm. 4. load:≤200LBS. 5. Surface Treatment:zinc 6. Material: cold rolled steel.T=2.0*1.8*1.8mm. 7. Customization: can be customized as needed. 8. product number: LZ-5802
REACH / RoHS
EU Shipping
ISO 9001
Technical Specifications
General
| Parameter | Value | Unit |
|---|---|---|
| Product name | 58mm width slide rail (Basic Style) | mm |
| Brand | oblueo | — |
| Model | LZ-5802 | — |
| Long | 250~2000mm | mm |
| Width | 58mm | mm |
| Height | 19mm | mm |
| Colour | Zinc/black | — |
| Material quality | Cold rolled steel | — |
| Steel thickness | 2.0*1.8*1.8mm | — |
| Load bearing | ≤100KG / 250LBS | KG |
| Salt mist | 24-48H | H |
| Installation method | Side installation | — |
| Customized | Customizable length and holes | — |
| Application industry | RV, Industrial equipment, ATM machines, etc | — |
| Drawings:PDF/CAD/3D | Consult the sales engineer to obtain | — |
| Usage method | Consult the sales engineer to obtain | — |
| Industrial packaging | 2 PCS / Transparent bag,10 PCS / carton | — |
| Contacts | Robinson Zhao | — |
| Tel | 86-0760-8638 0655 | — |
| sales@oblueo.com | — | |
| Add | Sanxiang Town, Zhongshan City, Guangdong Province, China | — |
Product Description

| Product Introduction | |
| Product name | 58mm width slide rail (Basic Style) |
| Brand | oblueo |
| Model | LZ-5802 |
| Specification parameters | |
| Long | 250~2000mm |
| Width | 58mm |
| Height | 19mm |
| Colour | Zinc/black |
| Material quality | Cold rolled steel |
| Steel thickness | 2.0*1.8*1.8mm |
| Load bearing | ≤100KG / 250LBS |
| Salt mist | 24-48H |
| Installation method | Side installation |
| Customized | Customizable length and holes |
| Application industry | RV, Industrial equipment, ATM machines, etc |
| Product drawings | |
| Drawings:PDF/CAD/3D | Consult the sales engineer to obtain |
| Usage method | Consult the sales engineer to obtain |
| Packing list | |
| Industrial packaging | 2 PCS / Transparent bag,10 PCS / carton |
| Contact Us | |
| Company | Oblueo.Ltd |
| Contacts | Robinson Zhao |
| Tel | 86-0760-8638 0655 |
| 86-136 8018 6563 | |
| sales@oblueo.com | |
| Add | Sanxiang Town, Zhongshan City, Guangdong Province, China |
