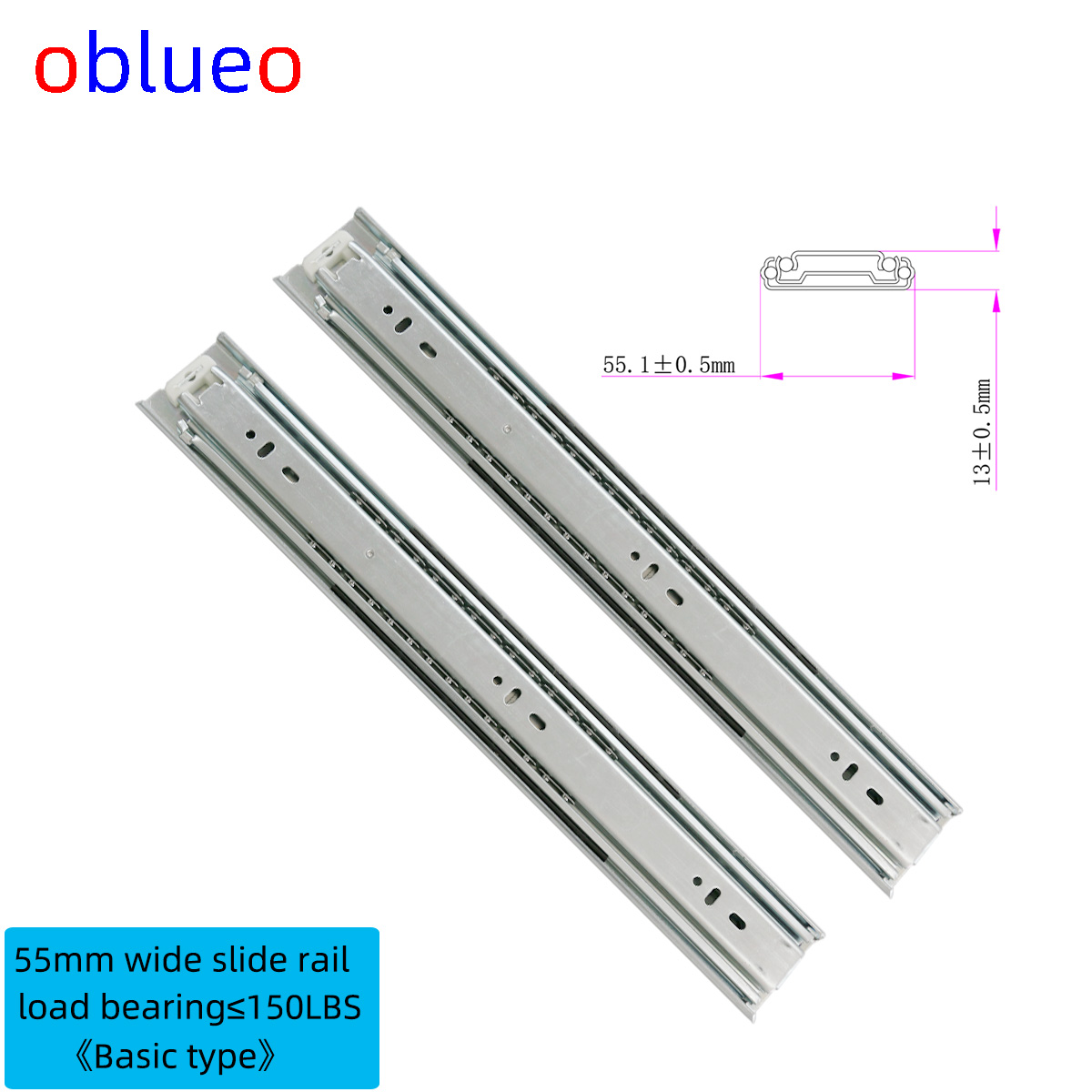

55mm wide slide rail (Basic Style)
SKU: OBL-00083
Cold Rolled Steel
55mm
Cold Rolled Steel
1. Length：200-1500mm. 2. Width：55mm. 3. Height: 12.7mm. 4. load：≤150LBS. 5. Surface Treatment：zinc 6. Material: cold rolled steel. T=1.8*1.4*1.8mm 7. Customization: can be customized as needed. 8. product number: LZ-5501
REACH / RoHS
EU Shipping
ISO 9001
Technical Specifications
General
| Parameter | Value | Unit |
|---|---|---|
| Product name | 55mm width slide rail (Basic Style) | mm |
| Brand | oblueo | — |
| Model | LZ-5501 | — |
| Long | 200~1500mm | mm |
| Width | 55mm | mm |
| Height | 12.7mm | mm |
| Colour | Zinc/black | — |
| Material quality | Cold rolled steel | — |
| Steel thickness | 1.8*1.4*1.8mm | — |
| Load bearing | ≤68KG / 150LBS | KG |
| Salt mist | 24-48H | H |
| Installation method | Side installation | — |
| Customized | Customizable length and holes | — |
| Application industry | RV, Industrial equipment, ATM machines, etc | — |
| Drawings:PDF/CAD/3D | Consult the sales engineer to obtain | — |
| Usage method | Consult the sales engineer to obtain | — |
| Industrial packaging | 2 PCS / Transparent bag,20 PCS / carton | — |
| Contacts | Robinson Zhao | — |
| Tel | 86-0760-8638 0655 | — |
| sales@oblueo.com | — | |
| Add | Sanxiang Town, Zhongshan City, Guangdong Province, China | — |
Product Description
| Product Introduction | |
| Product name | 55mm width slide rail (Basic Style) |
| Brand | oblueo |
| Model | LZ-5501 |
| Specification parameters | |
| Long | 200~1500mm |
| Width | 55mm |
| Height | 12.7mm |
| Colour | Zinc/black |
| Material quality | Cold rolled steel |
| Steel thickness | 1.8*1.4*1.8mm |
| Load bearing | ≤68KG / 150LBS |
| Salt mist | 24-48H |
| Installation method | Side installation |
| Customized | Customizable length and holes |
| Application industry | RV, Industrial equipment, ATM machines, etc |
| Product drawings | |
| Drawings:PDF/CAD/3D | Consult the sales engineer to obtain |
| Usage method | Consult the sales engineer to obtain |
| Packing list | |
| Industrial packaging | 2 PCS / Transparent bag,20 PCS / carton |
| Contact Us | |
| Company | Oblueo.Ltd |
| Contacts | Robinson Zhao |
| Tel | 86-0760-8638 0655 |
| 86-136 8018 6563 | |
| sales@oblueo.com | |
| Add | Sanxiang Town, Zhongshan City, Guangdong Province, China |
